deltaFlow
Public Member Functions | Private Member Functions | Private Attributes | List of all members
PowerFlowApplication Class Referencefinal

Orchestrates the full power-flow analysis pipeline for one run. More...

#include <PowerFlowApplication.H>

Collaboration diagram for PowerFlowApplication:
Collaboration graph
[legend]

Public Member Functions

 PowerFlowApplication (PowerFlowOptions options)
 Construct the application from already-parsed command-line options.

 ~PowerFlowApplication ()=default

 PowerFlowApplication (const PowerFlowApplication &)=delete

PowerFlowApplication & operator= (const PowerFlowApplication &)=delete

int run ()
 Runs the full analysis pipeline: load input, solve, apply Q-limits, recompute results, and write all output files.


Private Member Functions

void loadInput ()
 Reads and validates the input file via ReaderFactory.

void prepareModel ()
 Computes Y_bus and sets up the flat-start voltage/angle vectors.

void solve ()
 Runs the selected solver, re-running on Q-limit violations.

void finalizeResults ()
 Recomputes slack/PV bus power injections and updates busData_ post-solve.

void writeOutputs (double elapsedSec) const
 Writes all output files (.out, .sta, .dat, .msg) and CSV/terminal display.

void writeFailureStatus (double elapsedSec) const
 Writes only the status file, used on the non-convergence early-exit path.


Private Attributes

PowerFlowOptions options_

std::unique_ptr< Reader > reader_

BusData busData_

BranchData branchData_

Eigen::MatrixXcd Y_

int N_ = 0

int nBranch_ = 0

Eigen::VectorXd V_

Eigen::VectorXd delta_

Eigen::VectorXi typeBus_

bool finalConverged_ = false

int totalIterations_ = 0

double finalError_ = 0.0

std::vector< std::pair< int, double > > iterationHistory_

std::string solverName_

std::string formatName_


Detailed Description

Orchestrates the full power-flow analysis pipeline for one run.

Depends only on PowerFlowOptions (the parsed-options data), not on the full ArgumentParser interface (ISP) – it doesn't need parsing or help-printing.

Definition at line 55 of file PowerFlowApplication.H.

Constructor & Destructor Documentation

◆ PowerFlowApplication() [1/2]

PowerFlowApplication::PowerFlowApplication ( PowerFlowOptions  options)
explicit

Construct the application from already-parsed command-line options.

Parameters
optionsParsed command-line options.

Definition at line 43 of file PowerFlowApplication.C.

44 : options_(std::move(options)) {}

◆ ~PowerFlowApplication()

PowerFlowApplication::~PowerFlowApplication ( )
default

◆ PowerFlowApplication() [2/2]

PowerFlowApplication::PowerFlowApplication ( const PowerFlowApplication &  )
delete

Member Function Documentation

◆ finalizeResults()

void PowerFlowApplication::finalizeResults ( )
private

Recomputes slack/PV bus power injections and updates busData_ post-solve.

Definition at line 167 of file PowerFlowApplication.C.

167 {
168 Eigen::VectorXcd Vc(N_);
169 for (int i = 0; i < N_; ++i)
170 Vc(i) = std::polar(V_(i), delta_(i));
171
172 Eigen::VectorXd P_net = busData_.Pg - busData_.Pl;
173 Eigen::VectorXd Q_net = busData_.Qg - busData_.Ql;
174
175 // Recalculate slack bus power injection
176 for (int i = 0; i < N_; ++i) {
177 if (busData_.Type(i) == 1) { // Slack
178 std::complex<double> Ii = Y_.row(i) * Vc;
179 std::complex<double> Si = Vc(i) * std::conj(Ii);
180 P_net(i) = Si.real();
181 Q_net(i) = Si.imag();
182 }
183 }
184
185 // Recalculate reactive power for PV buses
186 for (int i = 0; i < N_; ++i) {
187 if (busData_.Type(i) == 2) { // PV
188 std::complex<double> Ii = Y_.row(i) * Vc;
189 Q_net(i) = -std::imag(std::conj(Vc(i)) * Ii);
190 }
191 }
192
193 for (int i = 0; i < N_; ++i) {
194 busData_.V(i) = std::abs(Vc(i));
195 busData_.delta(i) = std::arg(Vc(i)) * 180.0 / M_PI;
196 busData_.Pg(i) = P_net(i) + busData_.Pl(i);
197 busData_.Qg(i) = Q_net(i) + busData_.Ql(i);
198 }
199
200 double PLoss = busData_.Pg.sum() - busData_.Pl.sum();
201 double QLoss = busData_.Qg.sum() - busData_.Ql.sum();
202 LOG_DEBUG("Total real power loss: {:.6f} p.u.", PLoss);
203 LOG_DEBUG("Total reactive power loss: {:.6f} p.u.", QLoss);
204}
LOG_DEBUG
#define LOG_DEBUG(msg,...)
Macro for logging a debug-level message.
Definition Logger.H:85
BusData::Ql
Eigen::VectorXd Ql
Reactive power load [MVAr or p.u.].
Definition Data.H:65
BusData::V
Eigen::VectorXd V
Voltage magnitude [p.u.].
Definition Data.H:60
BusData::Pg
Eigen::VectorXd Pg
Active power generation [MW or p.u.].
Definition Data.H:62
BusData::delta
Eigen::VectorXd delta
Voltage angle [rad or deg].
Definition Data.H:61
BusData::Pl
Eigen::VectorXd Pl
Active power load [MW or p.u.].
Definition Data.H:64
BusData::Qg
Eigen::VectorXd Qg
Reactive power generation [MVAr or p.u.].
Definition Data.H:63
BusData::Type
Eigen::VectorXi Type
Bus type (1=Slack, 2=PV, 3=PQ)
Definition Data.H:58

References busData_, BusData::delta, delta_, LOG_DEBUG, N_, BusData::Pg, BusData::Pl, BusData::Qg, BusData::Ql, BusData::Type, BusData::V, V_, and Y_.

Here is the caller graph for this function:

◆ loadInput()

void PowerFlowApplication::loadInput ( )
private

Reads and validates the input file via ReaderFactory.

Definition at line 46 of file PowerFlowApplication.C.

46 {
47 std::string inputFile = options_.inputFile;
48 InputFormat format = options_.inputFormat;
49
50 reader_ = ReaderFactory::create(format);
51 formatName_ = reader_->name();
52
53 LOG_INFO("Reading {} file: {}", formatName_, inputFile);
54
55 reader_->read(inputFile);
56
57 busData_ = reader_->getBusData();
58 branchData_ = reader_->getBranchData();
59
60 if (busData_.ID.size() == 0 || branchData_.From.size() == 0) {
61 LOG_ERROR("No bus or branch data found in '{}'. Check the file exists and is valid.", inputFile);
62 std::exit(1);
63 }
64
65 N_ = busData_.ID.size();
66 nBranch_ = branchData_.From.size();
67
68 LOG_INFO("Model: {} buses, {} branches", N_, nBranch_);
69
70 int nSlack = 0, nPV = 0, nPQ = 0;
71 for (int i = 0; i < N_; ++i) {
72 if (busData_.Type(i) == 1) nSlack++;
73 else if (busData_.Type(i) == 2) nPV++;
74 else nPQ++;
75 }
76 LOG_DEBUG("Bus types: {} Slack, {} PV, {} PQ", nSlack, nPV, nPQ);
77}
InputFormat
InputFormat
Supported input file formats.
Definition Argparse.H:52
LOG_INFO
#define LOG_INFO(msg,...)
Macro for logging an info-level message.
Definition Logger.H:86
LOG_ERROR
#define LOG_ERROR(msg,...)
Macro for logging an error-level message.
Definition Logger.H:88
PowerFlowApplication::reader_
std::unique_ptr< Reader > reader_
Definition PowerFlowApplication.H:79
ReaderFactory::create
static std::unique_ptr< Reader > create(InputFormat format)
Construct a concrete reader for the given input format.
Definition ReaderFactory.C:27
BranchData::From
Eigen::VectorXi From
From bus indices.
Definition Data.H:84
BusData::ID
Eigen::VectorXi ID
Bus numbers.
Definition Data.H:56
PowerFlowOptions::inputFile
std::string inputFile
Path to input file.
Definition PowerFlowOptions.H:42
PowerFlowOptions::inputFormat
InputFormat inputFormat
Input file format.
Definition PowerFlowOptions.H:48

References branchData_, busData_, ReaderFactory::create(), formatName_, BranchData::From, BusData::ID, PowerFlowOptions::inputFile, PowerFlowOptions::inputFormat, LOG_DEBUG, LOG_ERROR, LOG_INFO, N_, nBranch_, options_, reader_, and BusData::Type.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ operator=()

PowerFlowApplication & PowerFlowApplication::operator= ( const PowerFlowApplication &  )
delete

◆ prepareModel()

void PowerFlowApplication::prepareModel ( )
private

Computes Y_bus and sets up the flat-start voltage/angle vectors.

Definition at line 79 of file PowerFlowApplication.C.

79 {
80 LoggingSolverObserver observer;
81 Y_ = Admittance::build(busData_, branchData_, &observer);
82 LOG_DEBUG("Admittance matrix computed ({}x{})", N_, N_);
83
84 V_.resize(N_);
85 delta_ = Eigen::VectorXd::Zero(N_);
86
87 // Flat start: PQ buses -> V=1.0, delta=0 for all; PV/Slack keep file voltage
88 for (int i = 0; i < N_; ++i) {
89 if (busData_.Type(i) == 3) { // PQ bus
90 V_(i) = 1.0;
91 } else {
92 V_(i) = busData_.V(i); // PV/Slack keep specified voltage
93 }
94 }
95
96 typeBus_ = busData_.Type;
97}
Admittance::build
static Eigen::MatrixXcd build(const BusData &busData, const BranchData &branchData, ISolverObserver *observer=nullptr)
Computes the complex bus admittance matrix ($$ Y_{bus} $$).
Definition Admittance.C:34
LoggingSolverObserver
Reports solver progress to the Logger singleton and terminal progress bar.
Definition LoggingSolverObserver.H:46

References branchData_, Admittance::build(), busData_, delta_, LOG_DEBUG, N_, BusData::Type, typeBus_, BusData::V, V_, and Y_.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ run()

int PowerFlowApplication::run ( )

Runs the full analysis pipeline: load input, solve, apply Q-limits, recompute results, and write all output files.

Returns
Process exit code (0 on success, 1 on failure/non-convergence).

Definition at line 239 of file PowerFlowApplication.C.

239 {
240 auto startTime = std::chrono::high_resolution_clock::now();
241
242 LOG_DEBUG("Job name :: {}", options_.jobName);
243 LOG_DEBUG("Input file :: {}", options_.inputFile);
244 LOG_DEBUG("Tolerance :: {:.6e}", options_.tolerance);
245 LOG_DEBUG("Max iter :: {}", options_.maxIterations);
246
247 loadInput();
248 prepareModel();
249 solve();
250
251 if (!finalConverged_) {
252 auto endTime = std::chrono::high_resolution_clock::now();
253 double elapsedSec = std::chrono::duration<double>(endTime - startTime).count();
254 writeFailureStatus(elapsedSec);
255 return 1;
256 }
257
258 finalizeResults();
259
260 auto endTime = std::chrono::high_resolution_clock::now();
261 double elapsedSec = std::chrono::duration<double>(endTime - startTime).count();
262
263 writeOutputs(elapsedSec);
264
265 fmt::print("\n");
266 fmt::print(fg(Display::LOGO_COLOR) | fmt::emphasis::bold,
267 " THE ANALYSIS HAS BEEN COMPLETED SUCCESSFULLY\n");
268 fmt::print("\n");
269 fmt::print(" Elapsed time : {:.3f} sec\n", elapsedSec);
270 fmt::print("\n");
271
272 return 0;
273}
PowerFlowApplication::loadInput
void loadInput()
Reads and validates the input file via ReaderFactory.
Definition PowerFlowApplication.C:46
PowerFlowApplication::writeFailureStatus
void writeFailureStatus(double elapsedSec) const
Writes only the status file, used on the non-convergence early-exit path.
Definition PowerFlowApplication.C:206
PowerFlowApplication::finalizeResults
void finalizeResults()
Recomputes slack/PV bus power injections and updates busData_ post-solve.
Definition PowerFlowApplication.C:167
PowerFlowApplication::writeOutputs
void writeOutputs(double elapsedSec) const
Writes all output files (.out, .sta, .dat, .msg) and CSV/terminal display.
Definition PowerFlowApplication.C:212
PowerFlowApplication::solve
void solve()
Runs the selected solver, re-running on Q-limit violations.
Definition PowerFlowApplication.C:99
PowerFlowApplication::prepareModel
void prepareModel()
Computes Y_bus and sets up the flat-start voltage/angle vectors.
Definition PowerFlowApplication.C:79
Display::LOGO_COLOR
constexpr fmt::rgb LOGO_COLOR
deltaFlow logo color
Definition Display.H:50
PowerFlowOptions::jobName
std::string jobName
Job name (defaults to input filename)
Definition PowerFlowOptions.H:43
PowerFlowOptions::maxIterations
int maxIterations
Maximum number of iterations ($$ N_{max} $$)
Definition PowerFlowOptions.H:45
PowerFlowOptions::tolerance
double tolerance
Convergence tolerance ($$ \epsilon $$)
Definition PowerFlowOptions.H:44

References finalConverged_, finalizeResults(), PowerFlowOptions::inputFile, PowerFlowOptions::jobName, loadInput(), LOG_DEBUG, Display::LOGO_COLOR, PowerFlowOptions::maxIterations, options_, prepareModel(), solve(), PowerFlowOptions::tolerance, writeFailureStatus(), and writeOutputs().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ solve()

void PowerFlowApplication::solve ( )
private

Runs the selected solver, re-running on Q-limit violations.

Definition at line 99 of file PowerFlowApplication.C.

99 {
100 SolverType solverType = options_.solverType;
101
102 auto solverImpl = SolverFactory::create(solverType);
103 solverName_ = solverImpl->name();
104
105 Eigen::MatrixXd G = Y_.array().real().matrix();
106 Eigen::MatrixXd B = Y_.array().imag().matrix();
107
108 int maxIter = options_.maxIterations;
109 double tolerance = options_.tolerance;
110
111 LOG_INFO("Starting {} solver ...", solverName_);
112
113 LoggingSolverObserver observer;
114 bool Q_lim_status = true;
115
116 while (Q_lim_status) {
117 Eigen::VectorXd Ps = busData_.Pg - busData_.Pl;
118 Eigen::VectorXd Qs = busData_.Qg - busData_.Ql;
119
120 std::vector<int> pq_indices;
121 std::vector<int> pv_indices;
122
123 for (int i = 0; i < N_; ++i) {
124 if (typeBus_(i) == 3) pq_indices.push_back(i);
125 else if (typeBus_(i) == 2) pv_indices.push_back(i);
126 }
127
128 SolverContext ctx;
129 ctx.Y = &Y_;
130 ctx.G = &G;
131 ctx.B = &B;
132 ctx.V = &V_;
133 ctx.delta = &delta_;
134 ctx.type_bus = &typeBus_;
135 ctx.pq_bus_id = &pq_indices;
136 ctx.P = &Ps;
137 ctx.Q = &Qs;
138 ctx.N = N_;
139 ctx.n_pq = static_cast<int>(pq_indices.size());
140 ctx.maxIter = maxIter;
141 ctx.tolerance = tolerance;
142 ctx.omega = options_.relaxation;
143 ctx.iterHistory = &iterationHistory_;
144 ctx.observer = &observer;
145
146 bool converged = solverImpl->solve(ctx);
147 finalConverged_ = converged;
148
149 if (!converged) {
150 LOG_ERROR("{} solver failed to converge.", solverName_);
151 break;
152 }
153
154 Q_lim_status = Qlim::check(V_, delta_, typeBus_, G, B, busData_, pv_indices, N_, &observer);
155
156 if (Q_lim_status) {
157 LOG_DEBUG("Re-running {} with updated bus types ...", solverName_);
158 }
159 }
160
161 if (!iterationHistory_.empty()) {
162 totalIterations_ = iterationHistory_.back().first;
163 finalError_ = iterationHistory_.back().second;
164 }
165}
SolverType
SolverType
Types of solvers supported by deltaFlow.
Definition Argparse.H:43
PowerFlowApplication::iterationHistory_
std::vector< std::pair< int, double > > iterationHistory_
Definition PowerFlowApplication.H:94
Qlim::check
static bool check(const Eigen::VectorXd &V, const Eigen::VectorXd &delta, Eigen::VectorXi &type_bus, const Eigen::MatrixXd &G, const Eigen::MatrixXd &B, BusData &busData, const std::vector< int > &pv_bus_id, int n_bus, ISolverObserver *observer=nullptr)
Checks reactive power limits on PV buses after solver convergence.
Definition Qlim.C:36
SolverFactory::create
static std::unique_ptr< ISolver > create(SolverType type)
Construct a concrete solver for the given solver type.
Definition SolverFactory.C:27
PowerFlowOptions::solverType
SolverType solverType
Solver type.
Definition PowerFlowOptions.H:47
PowerFlowOptions::relaxation
double relaxation
Relaxation coefficient ($$ \omega $$)
Definition PowerFlowOptions.H:46
SolverContext
Shared input/output parameters for power-flow solvers.
Definition ISolver.H:49
SolverContext::Q
const Eigen::VectorXd * Q
Scheduled reactive power injections (Qg - Ql).
Definition ISolver.H:65
SolverContext::tolerance
double tolerance
Convergence tolerance.
Definition ISolver.H:73
SolverContext::V
Eigen::VectorXd * V
Voltage magnitudes [p.u.].
Definition ISolver.H:56
SolverContext::Y
const Eigen::MatrixXcd * Y
Bus admittance matrix (used by Gauss-Seidel).
Definition ISolver.H:51
SolverContext::P
const Eigen::VectorXd * P
Scheduled active power injections (Pg - Pl).
Definition ISolver.H:64
SolverContext::maxIter
int maxIter
Maximum number of iterations.
Definition ISolver.H:72
SolverContext::N
int N
Total number of buses.
Definition ISolver.H:68
SolverContext::delta
Eigen::VectorXd * delta
Voltage angles [rad].
Definition ISolver.H:57
SolverContext::G
const Eigen::MatrixXd * G
Conductance matrix (used by Newton-Raphson).
Definition ISolver.H:52
SolverContext::type_bus
Eigen::VectorXi * type_bus
Bus type vector (1=Slack, 2=PV, 3=PQ).
Definition ISolver.H:60
SolverContext::observer
class ISolverObserver * observer
Optional injected progress/log observer (DIP); nullptr = silent.
Definition ISolver.H:78
SolverContext::B
const Eigen::MatrixXd * B
Susceptance matrix (used by Newton-Raphson).
Definition ISolver.H:53
SolverContext::iterHistory
std::vector< std::pair< int, double > > * iterHistory
Optional iteration history sink.
Definition ISolver.H:77
SolverContext::n_pq
int n_pq
Number of PQ buses (Newton-Raphson).
Definition ISolver.H:69
SolverContext::omega
double omega
Relaxation coefficient (Gauss-Seidel only).
Definition ISolver.H:74
SolverContext::pq_bus_id
const std::vector< int > * pq_bus_id
0-based PQ bus indices (Newton-Raphson).
Definition ISolver.H:61

References SolverContext::B, busData_, Qlim::check(), SolverFactory::create(), SolverContext::delta, delta_, finalConverged_, finalError_, SolverContext::G, iterationHistory_, SolverContext::iterHistory, LOG_DEBUG, LOG_ERROR, LOG_INFO, SolverContext::maxIter, PowerFlowOptions::maxIterations, SolverContext::N, N_, SolverContext::n_pq, SolverContext::observer, SolverContext::omega, options_, SolverContext::P, BusData::Pg, BusData::Pl, SolverContext::pq_bus_id, SolverContext::Q, BusData::Qg, BusData::Ql, PowerFlowOptions::relaxation, solverName_, PowerFlowOptions::solverType, SolverContext::tolerance, PowerFlowOptions::tolerance, totalIterations_, SolverContext::type_bus, typeBus_, SolverContext::V, V_, SolverContext::Y, and Y_.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ writeFailureStatus()

void PowerFlowApplication::writeFailureStatus ( double  elapsedSec) const
private

Writes only the status file, used on the non-convergence early-exit path.

Definition at line 206 of file PowerFlowApplication.C.

206 {
207 StaFileWriter staWriter;
208 staWriter.write(options_.jobName, options_.inputFile, solverName_, formatName_,
209 N_, nBranch_, options_.maxIterations, 0.0, options_.tolerance, false, elapsedSec);
210}
StaFileWriter
Writes the status file (.sta) with a compact solver summary.
Definition StaFileWriter.H:38
StaFileWriter::write
bool write(const std::string &jobName, const std::string &inputFile, const std::string &solverName, const std::string &formatName, int nBus, int nBranch, int iterations, double finalError, double tolerance, bool converged, double elapsedSec) const
Writes the status file (.sta) with a compact solver summary.
Definition StaFileWriter.C:30

References formatName_, PowerFlowOptions::inputFile, PowerFlowOptions::jobName, PowerFlowOptions::maxIterations, N_, nBranch_, options_, solverName_, PowerFlowOptions::tolerance, and StaFileWriter::write().

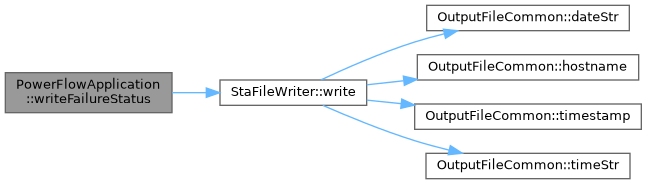

Here is the call graph for this function:
Here is the caller graph for this function:

◆ writeOutputs()

void PowerFlowApplication::writeOutputs ( double  elapsedSec) const
private

Writes all output files (.out, .sta, .dat, .msg) and CSV/terminal display.

Definition at line 212 of file PowerFlowApplication.C.

212 {
213 dispBusData(busData_);
214 dispLineFlow(busData_, branchData_, Y_);
215
216 writeOutputCSV(busData_);
217
218 std::string jobName = options_.jobName;
219 std::string inputFile = options_.inputFile;
220 double tolerance = options_.tolerance;
221
222 OutFileWriter outWriter;
223 outWriter.write(jobName, inputFile, solverName_, formatName_,
224 busData_, branchData_, Y_, totalIterations_, finalError_, tolerance, elapsedSec);
225
226 StaFileWriter staWriter;
227 staWriter.write(jobName, inputFile, solverName_, formatName_,
228 N_, nBranch_, totalIterations_, finalError_, tolerance, finalConverged_, elapsedSec);
229
230 DatFileWriter datWriter;
231 datWriter.write(jobName, inputFile, solverName_, formatName_,
232 busData_, branchData_, iterationHistory_, totalIterations_, finalError_,
233 tolerance, finalConverged_, elapsedSec);
234
235 MsgFileWriter msgWriter;
236 msgWriter.write(jobName, solverName_, iterationHistory_, tolerance, finalConverged_);
237}
dispBusData
void dispBusData(const BusData &busData)
Displays bus data in a human-readable format.
Definition Writer.C:36
dispLineFlow
void dispLineFlow(const BusData &busData, const BranchData &branchData, const Eigen::MatrixXcd &Y, double basemva)
Displays the line flow results, including power flow and losses.
Definition Writer.C:76
writeOutputCSV
bool writeOutputCSV(const BusData &busData)
Writes bus data results to a CSV file.
Definition Writer.C:192
DatFileWriter
Writes the detailed data file (.dat) with full input/output records.
Definition DatFileWriter.H:42
DatFileWriter::write
bool write(const std::string &jobName, const std::string &inputFile, const std::string &solverName, const std::string &formatName, const BusData &busData, const BranchData &branchData, const std::vector< std::pair< int, double > > &iterationHistory, int totalIterations, double finalError, double tolerance, bool converged, double elapsedSec, double basemva=100.0) const
Writes the detailed data file (.dat) with full input/output records.
Definition DatFileWriter.C:31
MsgFileWriter
Writes the message file (.msg) with iteration history.
Definition MsgFileWriter.H:40
MsgFileWriter::write
bool write(const std::string &jobName, const std::string &solverName, const std::vector< std::pair< int, double > > &iterationHistory, double tolerance, bool converged) const
Writes the message file (.msg) with iteration history.
Definition MsgFileWriter.C:31
OutFileWriter
Writes the main output file (.out) with full analysis results.
Definition OutFileWriter.H:44
OutFileWriter::write
bool write(const std::string &jobName, const std::string &inputFile, const std::string &solverName, const std::string &formatName, const BusData &busData, const BranchData &branchData, const Eigen::MatrixXcd &Y, int iterations, double finalError, double tolerance, double elapsedSec, double basemva=100.0) const
Writes the main output file (.out) with full analysis results.
Definition OutFileWriter.C:30

References branchData_, busData_, dispBusData(), dispLineFlow(), finalConverged_, finalError_, formatName_, PowerFlowOptions::inputFile, iterationHistory_, PowerFlowOptions::jobName, N_, nBranch_, options_, solverName_, PowerFlowOptions::tolerance, totalIterations_, OutFileWriter::write(), DatFileWriter::write(), StaFileWriter::write(), MsgFileWriter::write(), writeOutputCSV(), and Y_.

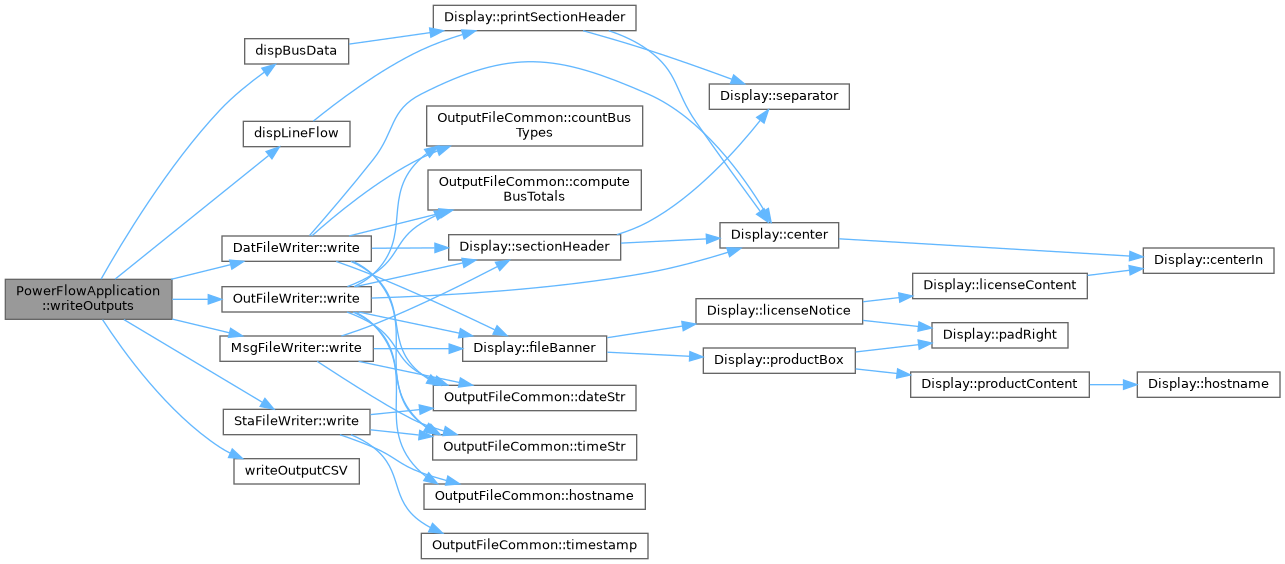

Here is the call graph for this function:
Here is the caller graph for this function:

Member Data Documentation

◆ branchData_

BranchData PowerFlowApplication::branchData_
private

Definition at line 81 of file PowerFlowApplication.H.

◆ busData_

BusData PowerFlowApplication::busData_
private

Definition at line 80 of file PowerFlowApplication.H.

◆ delta_

Eigen::VectorXd PowerFlowApplication::delta_
private

Definition at line 88 of file PowerFlowApplication.H.

◆ finalConverged_

bool PowerFlowApplication::finalConverged_ = false
private

Definition at line 91 of file PowerFlowApplication.H.

◆ finalError_

double PowerFlowApplication::finalError_ = 0.0
private

Definition at line 93 of file PowerFlowApplication.H.

◆ formatName_

std::string PowerFlowApplication::formatName_
private

Definition at line 97 of file PowerFlowApplication.H.

◆ iterationHistory_

std::vector<std::pair<int, double> > PowerFlowApplication::iterationHistory_
private

Definition at line 94 of file PowerFlowApplication.H.

◆ N_

int PowerFlowApplication::N_ = 0
private

Definition at line 84 of file PowerFlowApplication.H.

◆ nBranch_

int PowerFlowApplication::nBranch_ = 0
private

Definition at line 85 of file PowerFlowApplication.H.

◆ options_

PowerFlowOptions PowerFlowApplication::options_
private

Definition at line 77 of file PowerFlowApplication.H.

◆ reader_

std::unique_ptr<Reader> PowerFlowApplication::reader_
private

Definition at line 79 of file PowerFlowApplication.H.

◆ solverName_

std::string PowerFlowApplication::solverName_
private

Definition at line 96 of file PowerFlowApplication.H.

◆ totalIterations_

int PowerFlowApplication::totalIterations_ = 0
private

Definition at line 92 of file PowerFlowApplication.H.

◆ typeBus_

Eigen::VectorXi PowerFlowApplication::typeBus_
private

Definition at line 89 of file PowerFlowApplication.H.

◆ V_

Eigen::VectorXd PowerFlowApplication::V_
private

Definition at line 87 of file PowerFlowApplication.H.

◆ Y_

Eigen::MatrixXcd PowerFlowApplication::Y_
private

Definition at line 82 of file PowerFlowApplication.H.

The documentation for this class was generated from the following files:
