Public Member Functions | List of all members
OutFileWriter Class Referencefinal

Writes the main output file (.out) with full analysis results. More...

#include <OutFileWriter.H>

Public Member Functions

bool write (const std::string &jobName, const std::string &inputFile, const std::string &solverName, const std::string &formatName, const BusData &busData, const BranchData &branchData, const Eigen::MatrixXcd &Y, int iterations, double finalError, double tolerance, double elapsedSec, double basemva=100.0) const
 Writes the main output file (.out) with full analysis results.


Detailed Description

Writes the main output file (.out) with full analysis results.

Definition at line 44 of file OutFileWriter.H.

Member Function Documentation

◆ write()

bool OutFileWriter::write ( const std::string &  jobName,
const std::string &  inputFile,
const std::string &  solverName,
const std::string &  formatName,
const BusData &  busData,
const BranchData &  branchData,
const Eigen::MatrixXcd &  Y,
int  iterations,
double  finalError,
double  tolerance,
double  elapsedSec,
double  basemva = 100.0
) const

Writes the main output file (.out) with full analysis results.

Parameters
jobNameJob name (used as output filename stem).
inputFilePath to the input data file.
solverNameName of the solver method used.
formatNameName of the input file format.
busDataSolved bus data.
branchDataBranch data.
YBus admittance matrix.
iterationsNumber of solver iterations performed.
finalErrorFinal convergence error.
toleranceConvergence tolerance.
elapsedSecWall-clock time in seconds.
basemvaSystem base MVA (default: 100).
Returns
true on success, false if file could not be opened.

Definition at line 30 of file OutFileWriter.C.

43 {
44 std::string outFile = jobName + ".out";
45 std::ofstream out(outFile);
46 if (!out.is_open()) return false;
47
48 int nBus = busData.V.size();
49 int nBranch = branchData.From.size();
50 int W = Display::pageWidth;
51
52 out << Display::fileBanner();
53
54 out << fmt::format("\n deltaFlow v{:<32s}Date {:>14s} Time {:>8s}\n",
55 deltaFlow_VERSION, OutputFileCommon::dateStr(), OutputFileCommon::timeStr());
56 out << "\n";
57
58 out << Display::sectionHeader("S Y S T E M I N F O R M A T I O N");
59 out << fmt::format(" Hostname : {}\n", OutputFileCommon::hostname());
60 out << fmt::format(" CMake Version : {}\n", CMake_VERSION);
61 out << fmt::format(" Compiler Version : GCC {}\n", gcc_VERSION);
62 out << fmt::format(" deltaFlow Version : {}\n", deltaFlow_VERSION);
63 out << "\n";
64
65 out << Display::sectionHeader("J O B P A R A M E T E R S");
66 out << fmt::format(" Job Name : {}\n", jobName);
67 out << fmt::format(" Input File : {}\n", inputFile);
68 out << fmt::format(" Input Format : {}\n", formatName);
69 out << fmt::format(" Solver Method : {}\n", solverName);
70 out << fmt::format(" Convergence Tol. : {:.6e}\n", tolerance);
71 out << "\n";
72
73 out << Display::sectionHeader("M O D E L S U M M A R Y");
74
75 auto counts = OutputFileCommon::countBusTypes(busData);
76
77 out << fmt::format(" Number of Buses : {:>6d}\n", nBus);
78 out << fmt::format(" Slack Buses : {:>6d}\n", counts.nSlack);
79 out << fmt::format(" PV Buses : {:>6d}\n", counts.nPV);
80 out << fmt::format(" PQ Buses : {:>6d}\n", counts.nPQ);
81 out << fmt::format(" Number of Branches : {:>6d}\n", nBranch);
82 out << fmt::format(" Base MVA : {:>10.1f}\n", basemva);
83 out << "\n";
84
85 out << Display::sectionHeader("S O L V E R S U M M A R Y");
86 out << fmt::format(" Method : {}\n", solverName);
87 out << fmt::format(" Iterations : {:>6d}\n", iterations);
88 out << fmt::format(" Final Error : {:.6e}\n", finalError);
89 out << fmt::format(" Tolerance : {:.6e}\n", tolerance);
90 out << fmt::format(" Status : CONVERGED\n");
91 out << fmt::format(" Elapsed Time (sec) : {:.3f}\n", elapsedSec);
92 out << "\n";
93
94 out << Display::sectionHeader("B U S D A T A R E S U L T S");
95 out << fmt::format(" {:>4s} {:>9s} {:>9s} {:>10s} {:>10s} {:>10s} {:>10s} {:>10s}\n",
96 "Bus", "Voltage", "Angle", "Load", "Load", "Gen", "Gen", "Injected");
97 out << fmt::format(" {:>4s} {:>9s} {:>9s} {:>10s} {:>10s} {:>10s} {:>10s} {:>10s}\n",
98 "No.", "Mag.", "Degree", "MW", "Mvar", "MW", "Mvar", "Mvar");
99 out << " " << std::string(W - 4, '=') << "\n";
100
101 for (int i = 0; i < nBus; ++i) {
102 double injectedMvar = busData.Qg(i) - busData.Ql(i);
103 out << fmt::format(" {:>4d} {:>9.4f} {:>9.4f} {:>10.4f} {:>10.4f} {:>10.4f} {:>10.4f} {:>10.4f}\n",
104 i + 1, busData.V(i), busData.delta(i),
105 busData.Pl(i), busData.Ql(i), busData.Pg(i), busData.Qg(i), injectedMvar);
106 }
107
108 auto totals = OutputFileCommon::computeBusTotals(busData);
109
110 out << " " << std::string(W - 4, '=') << "\n";
111 out << fmt::format(" Total{:>27.4f} {:>10.4f} {:>10.4f} {:>10.4f} {:>10.4f}\n",
112 totals.totalPl, totals.totalQl, totals.totalPg, totals.totalQg, totals.totalInjected);
113 out << "\n";
114
115 out << Display::sectionHeader("L I N E F L O W A N D L O S S E S");
116 out << fmt::format(" {:>4s} {:>4s} {:>9s} {:>9s} {:>9s} {:>9s} {:>9s} {:>9s}\n",
117 "From", "To", "MW", "Mvar", "MVA", "Loss MW", "Loss Mvar", "Tap");
118 out << " " << std::string(W - 4, '=') << "\n";
119
120 auto Bc = branchData.B;
121 int nLine = nBranch;
122
123 Eigen::VectorXcd Vc(nBus);
124 Eigen::VectorXcd S(nBus);
125 for (int i = 0; i < nBus; ++i) {
126 double mag = busData.V(i);
127 double ang_rad = busData.delta(i) * M_PI / 180.0;
128 Vc(i) = std::polar(mag, ang_rad);
129 double P = busData.Pg(i) - busData.Pl(i);
130 double Q = busData.Qg(i) - busData.Ql(i);
131 S(i) = std::complex<double>(P, Q);
132 }
133
134 std::complex<double> SLT = 0.0;
135
136 for (int n = 1; n <= nBus; ++n) {
137 int n_idx = n - 1;
138 bool busprt = false;
139
140 for (int L = 0; L < nLine; ++L) {
141 if (!busprt) {
142 double P_inj = busData.Pg(n_idx) - busData.Pl(n_idx);
143 double Q_inj = busData.Qg(n_idx) - busData.Ql(n_idx);
144 double S_mag = std::abs(S(n_idx)) * basemva;
145 out << fmt::format(" {:>4d} {:>9.3f} {:>9.3f} {:>9.3f}\n",
146 n, P_inj, Q_inj, S_mag);
147 busprt = true;
148 }
149
150 auto writeLineFlow = [&](int from, int to, int L) {
151 int f_idx = from - 1;
152 int t_idx = to - 1;
153 double aL = (branchData.tapRatio(L) == 0.0) ? 1.0 : branchData.tapRatio(L);
154
155 std::complex<double> In, Ik;
156 if (branchData.From(L) == from) {
157 In = (Vc(f_idx) - aL * Vc(t_idx)) * Y(L) / (aL * aL) + Bc(L) / (aL * aL) * Vc(f_idx);
158 Ik = (Vc(t_idx) - Vc(f_idx) / aL) * Y(L) + Bc(L) * Vc(t_idx);
159 } else {
160 In = (Vc(f_idx) - Vc(t_idx) / aL) * Y(L) + Bc(L) * Vc(f_idx);
161 Ik = (Vc(t_idx) - aL * Vc(f_idx)) * Y(L) / (aL * aL) + Bc(L) / (aL * aL) * Vc(t_idx);
162 }
163 std::complex<double> Snk = Vc(f_idx) * std::conj(In) * basemva;
164 std::complex<double> Skn = Vc(t_idx) * std::conj(Ik) * basemva;
165 std::complex<double> SL = Snk + Skn;
166 SLT += SL;
167
168 if (aL != 1.0) {
169 out << fmt::format(" {:>4d} {:>9.3f} {:>9.3f} {:>9.3f} {:>9.3f} {:>9.3f} {:>9.3f}\n",
170 to, std::real(Snk), std::imag(Snk), std::abs(Snk),
171 std::real(SL), std::imag(SL), aL);
172 } else {
173 out << fmt::format(" {:>4d} {:>9.3f} {:>9.3f} {:>9.3f} {:>9.3f} {:>9.3f}\n",
174 to, std::real(Snk), std::imag(Snk), std::abs(Snk),
175 std::real(SL), std::imag(SL));
176 }
177 };
178
179 if (branchData.From(L) == n) {
180 writeLineFlow(n, branchData.To(L), L);
181 } else if (branchData.To(L) == n) {
182 writeLineFlow(n, branchData.From(L), L);
183 }
184 }
185 }
186
187 SLT /= 2.0;
188 out << "\n";
189 out << fmt::format(" Total loss {:>9.3f} {:>9.3f}\n",
190 std::real(SLT), std::imag(SLT));
191 out << "\n";
192
193 out << "\n";
194 out << "\n";
195 out << " JOB TIME SUMMARY\n";
196 out << fmt::format(" TOTAL CPU TIME (SEC) = {:>12.5f}\n", elapsedSec);
197 out << fmt::format(" WALLCLOCK TIME (SEC) = {:>12d}\n", static_cast<int>(std::round(elapsedSec)));
198 out << "\n";
199
200 out << Display::sectionHeader("A N A L Y S I S C O M P L E T E");
201 out << Display::center("THE ANALYSIS HAS BEEN COMPLETED SUCCESSFULLY") << "\n";
202 out << "\n";
203
204 out.close();
205 return true;
206}
Display::center
std::string center(const std::string &text)
Returns a centered string within the page width.
Definition Display.H:91
Display::pageWidth
constexpr int pageWidth
Standard output page width.
Definition Display.H:51
Display::sectionHeader
std::string sectionHeader(const std::string &title)
Returns a section header for output files.
Definition Display.H:226
Display::fileBanner
std::string fileBanner()
Returns a full plain-text banner for output/log files.
Definition Display.H:217
OutputFileCommon::hostname
std::string hostname()
Returns the current hostname.
Definition OutputFileCommon.H:60
OutputFileCommon::dateStr
std::string dateStr()
Returns the current date string.
Definition OutputFileCommon.H:79
OutputFileCommon::computeBusTotals
BusTotals computeBusTotals(const BusData &busData)
Computes total load/gen/injected Mvar across all buses.
Definition OutputFileCommon.H:119
OutputFileCommon::timeStr
std::string timeStr()
Returns the current time string.
Definition OutputFileCommon.H:85
OutputFileCommon::countBusTypes
BusTypeCounts countBusTypes(const BusData &busData)
Counts buses by type (1=Slack, 2=PV, else PQ).
Definition OutputFileCommon.H:98
BranchData::tapRatio
Eigen::VectorXd tapRatio
Transformer tap ratio ($$ a $$)
Definition Data.H:90
BranchData::B
Eigen::VectorXd B
Line susceptance ($$ B $$) [p.u.].
Definition Data.H:89
BranchData::From
Eigen::VectorXi From
From bus indices.
Definition Data.H:84
BranchData::To
Eigen::VectorXi To
To bus indices.
Definition Data.H:85
BusData::Ql
Eigen::VectorXd Ql
Reactive power load [MVAr or p.u.].
Definition Data.H:65
BusData::V
Eigen::VectorXd V
Voltage magnitude [p.u.].
Definition Data.H:60
BusData::Pg
Eigen::VectorXd Pg
Active power generation [MW or p.u.].
Definition Data.H:62
BusData::delta
Eigen::VectorXd delta
Voltage angle [rad or deg].
Definition Data.H:61
BusData::Pl
Eigen::VectorXd Pl
Active power load [MW or p.u.].
Definition Data.H:64
BusData::Qg
Eigen::VectorXd Qg
Reactive power generation [MVAr or p.u.].
Definition Data.H:63

References BranchData::B, Display::center(), OutputFileCommon::computeBusTotals(), OutputFileCommon::countBusTypes(), OutputFileCommon::dateStr(), BusData::delta, Display::fileBanner(), BranchData::From, OutputFileCommon::hostname(), Display::pageWidth, BusData::Pg, BusData::Pl, BusData::Qg, BusData::Ql, Display::sectionHeader(), BranchData::tapRatio, OutputFileCommon::timeStr(), BranchData::To, and BusData::V.

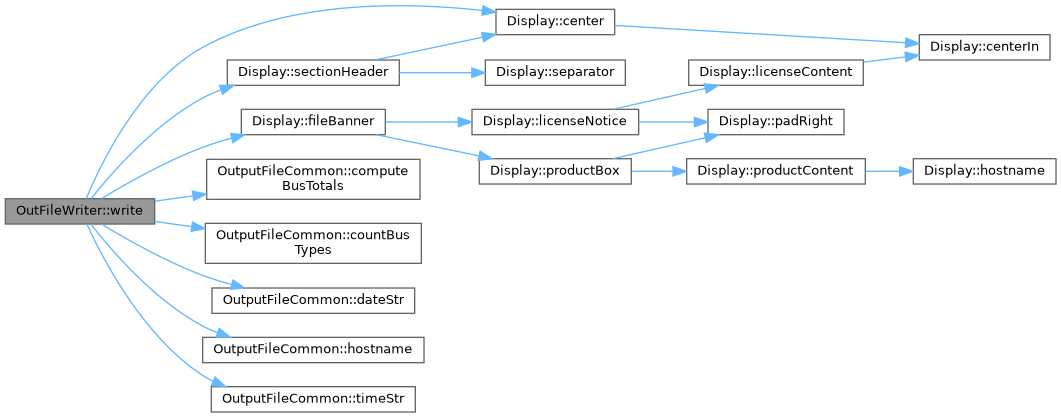

Here is the call graph for this function:
Here is the caller graph for this function:
The documentation for this class was generated from the following files:
